Catalyst 6000 Family - Multilayer Switches Catalyst

The Catalyst® 6000 Family, consisting of the Catalyst 6500 Series and the Catalyst 6000 Series, delivers a new line of high-performance, multilayer switching solutions for campus networks.

Designed to address the increased requirements for gigabit scalability, high-availability, and multilayer switching in backbone/distribution and server-aggregation environments, the Catalyst 6000 Family delivers exceptional scalability and price/performance, supporting a wide range of interface densities, performance, and high-availability options. Both Catalyst 6000 and 6500 Series switches support a wide range of interface types and densities, to include support for up to 384 - 10/100 Ethernet, 192 100FX Fast Ethernet, 8 OC12 ATM, and up to 130 Gigabit Ethernet ports - the highest in the industry.

Key Features and Benefits

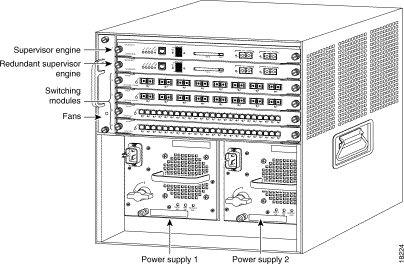

Catalyst 6006 and Catalyst 6506 Switches


Catalyst 6006 Switch/Catalyst 6506 Switch

Cisco Catalyst 6000 Family Release 5.3CSX Supervisor Software

Release 5.3CSX of the Catalyst® 6000 Family Supervisor software introduces support for the Catalyst 6000 Family Multilayer Switch Feature Card (MSFC) and the Policy Feature Card (PFC), as well as a variety of Ethernet, Gigabit Ethernet and Asynchronous Transfer Mode (ATM) line cards. Release 5.3CSX runs on all Catalyst 6000 Family Supervisors.

New Hardware Support

Release 5.3CSX

New Software Features

Release 5.3CSX



Catalyst 6000 Series and 6500 Series Specifications

Switching Backplane

  • Catalyst 6000 Series: 32 Gbps
  • Catalyst 6500 Series: Scalable to 256 Gbps

Memory

  • 64 Mbytes DRAM (Supervisor 1)
  • 64 Mbytes DRAM (MSFC); expandable to 128 Mbytes
  • Optional 16 and 24 Mbyte Flash PCMCIA cards

Interfaces

  • Gigabit Ethernet (SX LX/LH, and ZX interfaces via GBICs)
  • 100BaseFX MMF (MT-RJ)
  • 10/100BaseTX (RJ-45 and RJ-21 Options)
  • ATM OC12 (Single mode and Multimode Options)

Standard Network Protocols

  • IEEE 802.1Q, 802.1p, 802.3x Ethernet: IEEE 802.3, 10BaseT, and 10BaseFL Fast Ethernet: IEEE 802.3u, 100BaseTX, 10BaseFX
  • Gigabit Ethernet: IEEE 802.3z



Catalyst 6000 Family Supervisor Engines

Part Number

Description

Application

WS-X6K-SUP1-2GE

Supervisor Engine I for Catalyst 6000 Family, 2 Gigabit Ethernet Uplinks

Premier wiring closets with Layer 2 forwarding.

WS-X6K-SUP1A-2GE

Supervisor Engine IA for Catalyst 6000 Family, 2 Gigabit Ethernet Uplinks, Enhanced QoS, Supports MSFC & PFC

Premier wiring closets with Enhanced QoS, for congestion avoidance and traffic scheduling, with Layer 2 forwarding.

WS-X6K-SUP1A-PFC

Supervisor Engine IA for Catalyst 6000 Family, 2 Gigabit Ethernet Uplinks, Enhanced QoS, PFC

Premier wiring closets and server complexes with intelligent L3/L4 switching for QoS (traffic admission control, classification, prioritization & policing), security access control lists and accelerated server load balancing.

WS-X6K-SUP1A-MSFC

Supervisor Engine IA for Catalyst 6000 Family, 2 Gigabit Ethernet Uplinks, Enhanced QoS, PFC, MSFC

Backbone applications supporting wire-speed IP, IPX & IP Multicast with multiprotocol support for AppleTalk, DecNet & VINES, and large networks requiring IS-IS or BGP4 for scalable internal or interdomain routing.

Catalyst 6000 Family Supervisor Engine IA Cisco

The new Supervisor Engine IA utilizes next-generation ASIC technology, building upon the original Supervisor Engine I to provide enhanced quality of service (QoS) to enable end-to-end support for mission-critical traffic. This new Supervisor Engine IA delivers the most advanced intelligent switching available in the industry, providing per-port application recognition, admission control, prioritization and policing with multiple hardware queues to minimize network congestion and packet latency. This advanced QoS support is essential for enabling network-wide deployment of mission-critical applications and Enterprise voice services and solutions.



The PFC for the Supervisor Engine IA Enables Application-Aware Switching

The Policy Feature Card (PFC) is an integral part of the CiscoAssure end-to-end quality of service (QoS) and policy based intelligent networking solution. When ordered with a Catalyst 6000 Supervisor IA line card, the PFC can identify user applications and classify traffic with the appropriate priority level. The PFC in conjunction with Cisco's LocalDirector, is capable of providing wire speed Server Load Balancing (SLB) at 15 Mpps. The PFC also enables admission control in the wiring closet to prevent unauthorized applications from being allowed onto the network. In addition the PFC supports advanced QoS features such as packet classification and marking, scheduling, and congestion avoidance. These features, when combined with the advanced security features of the PFC, make the Catalyst® 6000 Family switch the most advanced switch in the industry by providing enhanced intelligent network services at wire speeds.

Deployable on the Catalyst 6000 Supervisor Engine IA, the PFC extends the features and functionality of the award-winning Catalyst 6000 Family. The PFC provides new enhanced policy based QoS and security features while continuing to provide those features commonly used in wiring closets designs such as protocol filtering, Internet Group Management Protocol (IGMP) snooping, and enhanced multicast packet replication. The PFC provides all these services when installed on the Supervisor IA.

No additional hardware components are required to provide these intelligent network services; however, with the addition of an Multilayer Switching Feature Card (MSFC), the PFC also supports Multilayer Switching (MLS) for IP, IPX®, and IP Multicast at 15 Mpps.



The MSFC Enables Full Multiprotocol Routing on the Catalyst 6000 Supervisor IA

The MSFC offers the following intelligent services with Cisco IOS software:

Product Number

Description

WS-X6K-SUP1A-MSFC

Catalyst 6000 Supervisor Engine IA, 2GE, plus MSFC and PFC

MEM-MSFC-128MB

Catalyst 6000 MSFC Memory, 128MB DRAM Option

MEM-MSFC-128MB=

Catalyst 6000 MSFC Memory, 128MB DRAM Spare



Advanced Packet-Filtering Security Features

Traditionally, switches operated at Layer 2 only, switching traffic within a VLAN and routers routed traffic between VLANs.

The Catalyst 6000 Family switch with either the MSFC or the PFC can implement access control lists using Layer 3 and Layer 4 packet filters without performance degradation. This includes both packets bridged within a VLAN (with the PFC) and packets routed between VLANs (with the MSFC).

ACLs that are defined on the router VLAN interfaces to access control routed traffic between VLANs are called IOS access control lists. ACLs that are applied within a VLAN are called VLAN ACLs (VACLs).

Catalyst 6000 Family switches support the following ACLs:

You can configure VACLs on the switch to apply to all packets that are routed into or out of a VLAN or are bridged within a VLAN. VACLs are strictly for security packet filtering and redirecting traffic to specific physical switch ports. Unlike IOS ACLs, VACLs are not defined by direction (input or output).

You can configure VACLs on Layer 3 addresses for IP and IPX. All other protocols are access controlled through MAC addresses and Ethertype using MAC VACLs (IP and IPX traffic is not access controlled by MAC VACLs). You can enforce VACLs only on packets going through the Catalyst 6000 Family switch; you cannot enforce VACLs on traffic between hosts on a hub or another switch connected to the Catalyst 6000 Family switch.

MSFC Ordering Information

Software for the MSFC must be ordered separately, and is described below. Note that in a redundant Supervisor configuration, each MSFC must be ordered with the appropriate software feature set and feature license.

Both the MSFC and the PFC require the 5.3CSX release or higher running on the Supervisor. Please upgrade the Supervisor to the 5.3CSX image or higher before installing the Multilayer Switching Feature Card or the Policy Feature on the Supervisor. Use of BGP, EGP, or ISIS routing protocols on the MSFC requires the purchase of the InterDomain Routing Feature License. One InterDomain Routing Feature License is required per MSFC (for example. a chassis with redundant supervisors DOES require two licenses if each MSFC is intended to use BGP, EGP, or ISIS). Use of mini-RMON on the Catalyst 6000 and 6500 Series switches requires the purchase of the RMON Agent License. Only one RMON Agent License is required per chassis (i.e. a chassis with redundant supervisors does NOT require two licenses). Licensing is based on the honor system.

Product Number

Description

Release 5.3CSX Feature Set

SFC6K-SUP-5.3.1

Catalyst 6000 Supervisor Flash Image, Release 5.3(1)CSX

MSFC Software Feature Sets

SC6MSFCC-12.0.3XE

Cisco IOS Catalyst 6000 Family MSFC---IP only

SC6MSFCD-12.0.3XE

Cisco IOS Catalyst 6000 Family MSFC---IP/IPX

SC6MSFCB-12.0.3XE

Cisco IOS Catalyst 6000 Family MSFC---Desktop

SC6MSFCA-12.0.3XE

Cisco IOS Catalyst 6000 Family MSFC---Enterprise

MSFC Feature License

FR-IRC6

Catalyst 6000 Family InterDomain Routing Feature License

Mini-RMON Agent Licenses

WS-C6X06-EMS-LIC

Catalyst 6x06 RMON Agent License

WS-C6X09-EMS-LIC

Catalyst 6x09 RMON Agent License



Fast Ethernet

Cisco's Catalyst® 6000 Family supports a full line of Fast Ethernet switching modules that deliver high performance, excellent scalability, and superior manageability---all at industry-leading price/performance ratios. The Catalyst 6000 Family Fast Ethernet switching modules offer unparalleled physical interface flexibility, including 10/100Base-TX with RJ-45 or Telco RJ-21 interfaces as well as 100Base-FX with multimode fiber MT-RJ connectors. And with up to 48 10/100 ports per module, the Catalyst 6000 Family switches provide high port density 10/100---up to 384 Fast Ethernet connections per platform.

Catalyst 6000 Family Fast Ethernet Switching Modules



100Base-FX Fast Ethernet Module (WS-X6224-100FX-MT)


10/100 Fast Ethernet Module (WS-X6248-RJ-48)

The Catalyst 6000 Family Fast Ethernet switching modules support wire-speed, switched connectivity for unshielded twisted-pair (UTP), shielded twisted-pair (STP), and fiber-optic cable. Up to eight modules can be added to a Catalyst 6000 Family platform representing industry-leading performance and scalability for Fast Ethernet customers. Maximum Station-to-Station Cabling Distance.



Gigabit Ethernet Modules

The Catalyst® 6000 Family from Cisco Systems offers the choice of two Gigabit Ethernet modules, eight- and 16-port versions, to support high-performance Gigabit backbone and server switching configurations, and to aggregate traffic from high-density 10/100-Mbps wiring closets.

Up to eight Gigabit Ethernet modules can be added to a single nine-slot Catalyst 6000 Family for a maximum of 130 Gigabit ports per platform providing excellent scalability and industry-leading price/performance.

The Catalyst 6000 Family eight- and 16-port Gigabit Ethernet modules are IEEE 802.3z standards-compliant and support full duplex operation. The eight-port module (WS-6408-GBIC) can be configured with any combination of shortwave (SX) and longwave/long haul (LX/LH) Gigabit Interface Converters (GBICs). All Gigabit Ethernet ports have SC-type connectors for multimode fiber (MMF) or single mode fiber (SMF).

The eight-port Gigabit Ethernet module in the Catalyst 6000 Family supports GigaBit Interface Converter (GBIC) modular technology to ensure customers have the maximum flexibility in configuring physical network interfaces in their Gigabit Ethernet network. GBICs enable the customer to intermix any combination of 802.3z-compliant 1000BaseX interfaces on a port-by-port basis. GBICs are hot swappable and provide easy selection or change of interfaces. Cisco is offering a 1000BaseLX/LH interface that is fully compliant with the IEEE 802.3z 1000BaseLX standard, but has the ability to go up to 10 km over single mode fiber, 5 km further than garden-variety 1000BaseLX interfaces. The 1000BaseZX standard has the ability to transmit traffic up to 100 Km over dispersion shifted fiber.

The 16-port Gigabit Ethernet module supports MT-RJ connectors for multimode fiber

Catalyst 6000 Family Eight-Port Gigabit Ethernet Module, 16-Port Gigabit Ethernet Module



Module

Interface/ Fiber Core

62.5 um Multimode 160/500 MHz-km

62.5 um Multimode 200/500 MHz-km

50 um Multimode 400/400 MHz-km

50 um Multimode 500/500 MHz-km

9/10 um Single Mode

Dispersion Shifted

WS-X6416-GE-MT

MT-RJ

220m

275m

500m

550m





WS-X6408-GBIC

1000BaseSX

220m

275m

500m

550m





WS-X6408-GBIC

1000BaseLX/LH

550m

550m

550m

550m

10 km



WS-X6408-GBIC

1000BaseZX









70 km

100 km

Cisco 1000BaseLX/LH interfaces fully comply with the IEEE 802.3z 1000BaseLX standard. However, their higher optical quality allows them to reach 10 km over single-mode fiber versus the 5 km specified in the standard.

Maximum Station-to-Station Cabling Distance



Catalyst 6000 Family Multilayer Switch Module



The WS-X6302-MSM Multilayer switch module (MSM) for Catalyst 6000 Family switches combines sophisticated Cisco IOS® software features with advanced ASIC technology to support wire-speed multiprotocol routing in a compact, manageable platform. The MSM enables Catalyst 6000 Family customers to deploy very high-performance multiprotocol, multilayer switch services in the distribution/backbone of their network to support wiring closet switches.

The MSM requires a single slot (with no slot dependency) in any Catalyst 6000 (WS-C6006 and WS-C6009) or Catalyst 6500 (WS-C6506 and WS-C6509) Series platform.

The MSM module was designed with fully integrated Application Specific Integrated Circuits (ASIC) enabling aggregate throughput of up to six million packets per second for Layer 3 switching (IP, IPX®, and IP multicast). Combined with industry-leading IOS software, the high performance MSM enables the Catalyst 6000 Family to be particularly effective as a backbone/distribution switch.

Key Benefits

Industry-Leading Layer 3 with Cisco IOS Software

The MSM supports feature-rich IP, IPX, and IP multicast Layer 3 switching without sacrificing the performance required in a scalable backbone/distribution platform. This unique combination of performance and flexibility enables customers to integrate the Catalyst 6000 Family into existing IOS network configurations while at the same time scaling their backbone capacity to gigabit speeds. Routing protocols supported in the MSM module include:

Additional IOS protocols supported in the Catalyst 6000 Family MSM module include:

Wire Speed IPX Support

The Catalyst 6000 Family MSM module is also a full-featured IPX router. The MSM provides basic services such as Novell network RIP and Service Advertising Protocols (SAPs), and Novell Enhanced IGRP, as well as route distribution among all of these protocols. In addition, the MSM supports the following features to scale Novell networks:

Multilayer Services IP Multicast Switching and Routing

The MSM module supports IP multicast at wire speeds across the multigigabit Catalyst 6000 Family backplane. As multicast applications such as Microsoft NetShow and NetMeeting become more widely deployed, end-to-end multicast support becomes increasingly important with multicast routing protocols, which are integral for a consistent, end-to-end multicast solution. The MSM supports both Protocol Independent Multicast (PIM) sparse and dense modes and Distance Vector Multicast Routing Protocol (DVMRP) interoperability for legacy applications. The MSM provides support for IGMP, Versions 1 and 2, and CGMP server capabilities for integrating IP multicast support with Catalyst® wiring closet switches. These protocols are necessary not only for IP multicast clients to join groups but also for efficient leave processing, which is necessary to save bandwidth and end-station CPU cycles.

Advanced Management for Critical Backbone Switch Availability

The MSM module in the Catalyst 6000 Family supports a wide variety of CiscoAssure Policy Networking management tools and applications to enable fault management, configuration management, performance management, security management, and other functions. These network management applications are critical in backbone switch configurations with concentrated network traffic. The MSM and Catalyst 6000 Family platforms support full SNMP functions, password requirements for local or Telnet access and, to reduce the costs of administering software upgrades, Flash memory allows remote downloads using Trivial File Transfer Protocol (TFTP) of new revisions of operating systems without hardware changes.

Quality of Service

The Multilayer Switch Module incorporates rich QoS capabilities enabling important services such as support for dedicated bandwidth, avoidance and management of network congestion, and traffic prioritization across the network. To support these services, the MSM implements Weighted Round Robin (WRR) queuing, Per-Queue Drop Thresholds, and Per-Flow Queuing (PFQ) to differentiate and protect mission-critical application bandwidth from other, less critical, traffic.

The Quality of Service capabilities of the multilayer switch module, when combined with CiscoAssure Policy Networking, deliver the ability to protect mission-critical traffic by allowing network administrators to easily provision and manage traffic flows in the network without sacrificing performance.

Features

Supports a wide variety of SNMP with comprehensive management.
